Reasonix Integration

Connect Reasonix to LLM Gateway, choose a model, and verify the connection with a real coding task.

Reasonix is an open-source coding agent with a terminal interface, desktop app, and editor integration. Its current release supports OpenAI-compatible endpoints, so you can connect it directly to LLM Gateway.

This walkthrough was verified with Reasonix 1.38.1: the agent read a TypeScript project, edited a function, and ran its tests through the gateway.

Video walkthrough

Install

Install the current native CLI:

1pnpm add -g reasonix2reasonix --version

See the official installation instructions for other platforms and installation methods. These instructions apply to Reasonix 1.x; the older 0.x release uses a different configuration format.

Connect to LLM Gateway

Run the provider setup:

1reasonix setup

Add an OpenAI-compatible provider with these values:

Setting Value
Provider name llmgateway
Base URL https://api.llmgateway.io/v1
API key Your LLM Gateway API key
Model A text model with tool support from the models page

Choose Save and exit, then select this provider as your default.

Reasonix stores provider definitions in ~/.reasonix/config.toml on macOS and Linux, or %AppData%\reasonix\config.toml on Windows. A minimal configuration looks like this:

1default_model = "llmgateway"2
3[[providers]]4name = "llmgateway"5kind = "openai"6base_url = "https://api.llmgateway.io/v1"7model = "deepseek-v4-flash"8api_key_env = "LLMGATEWAY_API_KEY"9headers = { x-source = "reasonix" }

The model above is the example used for this walkthrough. Copy your preferred model ID from the live catalogue.

Save the key through reasonix setup. The api_key_env field names the entry in Reasonix's own .env file. Current Reasonix reads provider secrets from that file inside its configuration directory; exporting a shell variable alone does not configure the key.

Using DevPass? Use a canonical model ID without an upstream provider prefix. The gateway selects the serving provider for coding plans.

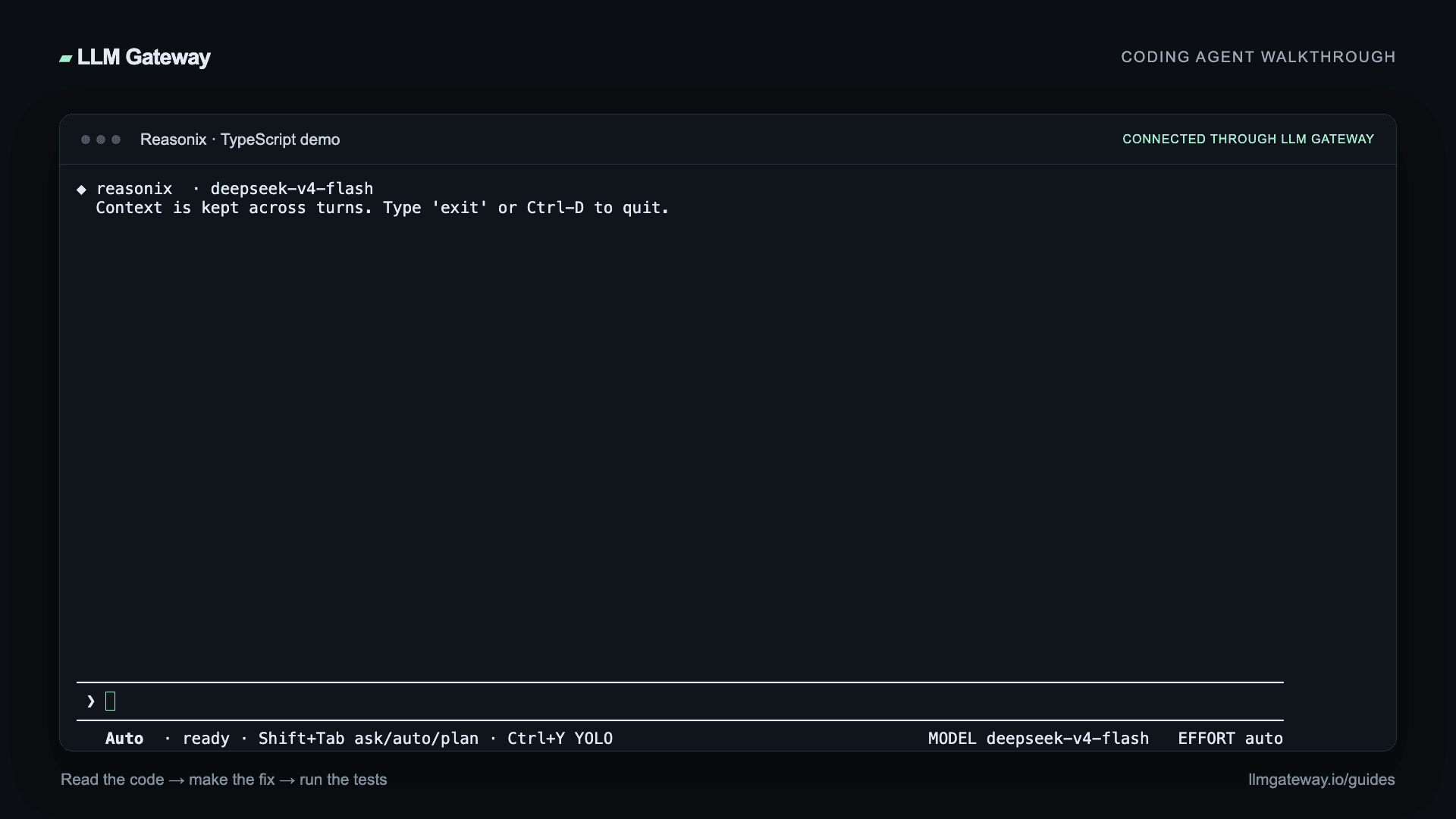

Reasonix connected to the selected gateway model

Try a coding task

Start Reasonix from your project directory:

1cd your-project2reasonix

Ask it to fix a specific problem and verify the result:

1Fix slugify.ts so all tests pass. Read the files, make the smallest fix,2run node --test slugify.test.ts, and summarize. Do not edit the tests.

Reasonix can read files, propose edits, and execute tests. Review any permission prompts before allowing commands. For a one-shot task, use reasonix run "your task".

Check the request's model, tokens, and cost in your LLM Gateway dashboard.

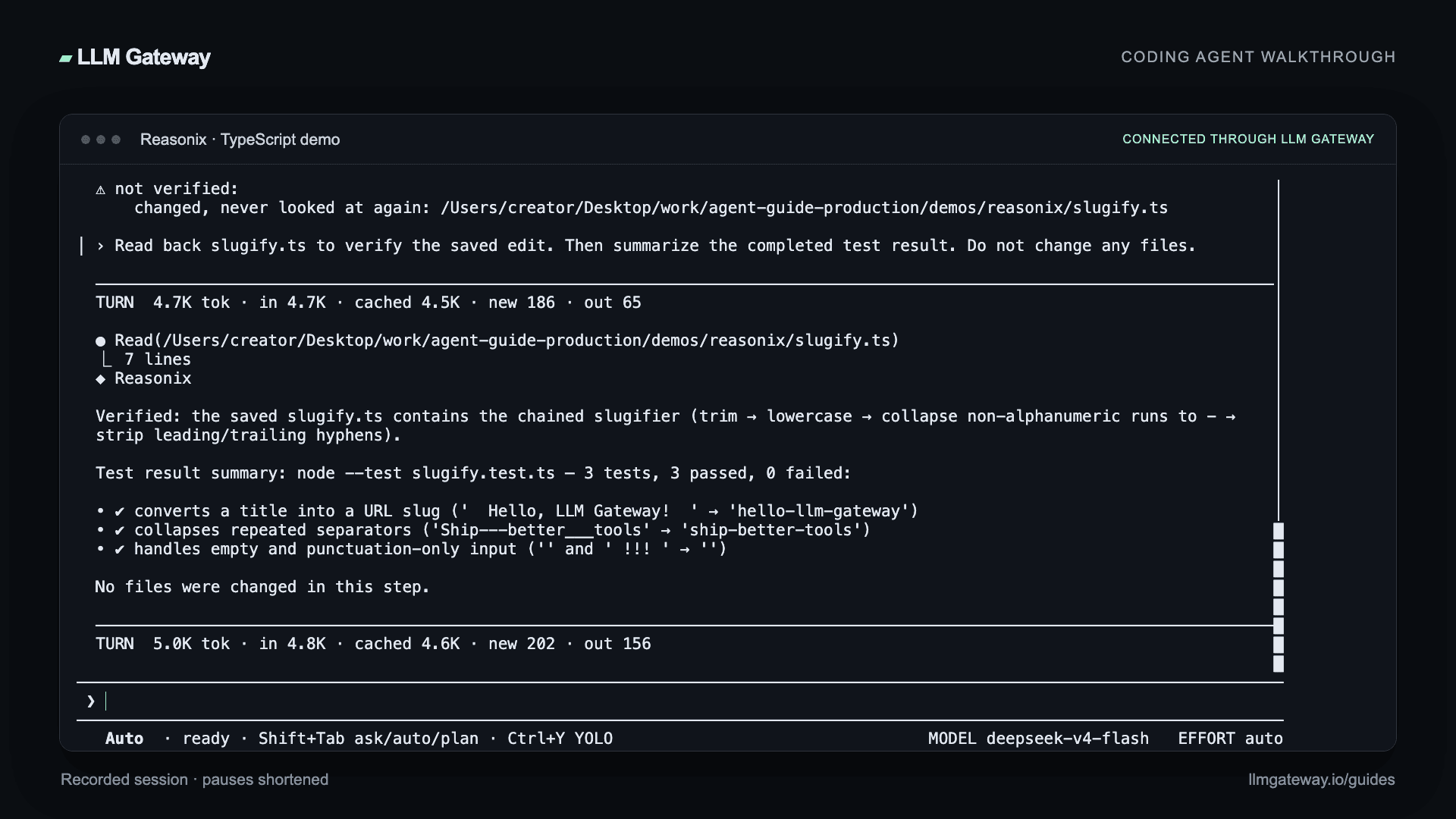

Reasonix completing the coding task through LLM Gateway

Troubleshooting

Missing key or authentication error

Open reasonix setup and save your LLM Gateway key for the configured provider. Check that api_key_env matches the entry in Reasonix's own .env file. Keep that file out of your project repository.

Model not found

Copy the exact ID from the models page. In Reasonix, --model llmgateway selects the configured provider; the provider's model field selects the gateway model.

Requests go to another provider

Set default_model = "llmgateway", or launch with reasonix --model llmgateway. Check for a project-level reasonix.toml, which can override your user configuration.

Connection errors

Use kind = "openai" and include /v1 in the base URL. For configuration and diagnostic commands, see the Reasonix guide.
