Kilo Code Integration

Use LLM Gateway with Kilo Code in VS Code. Built-in provider — just search, connect your API key, and start coding.

Kilo Code is an AI coding assistant that runs as a VS Code extension. It supports autonomous coding, file editing, terminal commands, and browser automation. LLM Gateway is a built-in provider in Kilo Code, so setup takes under a minute — no manual base URL configuration required.

Prerequisites

  • VS Code or a VS Code-based editor (Cursor, Windsurf, etc.)
  • An LLM Gateway API key — sign up free (no credit card required)

Setup

Step 1: Install Kilo Code

Open VS Code, go to the Extensions view (Ctrl+Shift+X / Cmd+Shift+X), search for Kilo Code, and click Install.

Alternatively, install from the VS Code Marketplace.

Step 2: Open Providers Settings

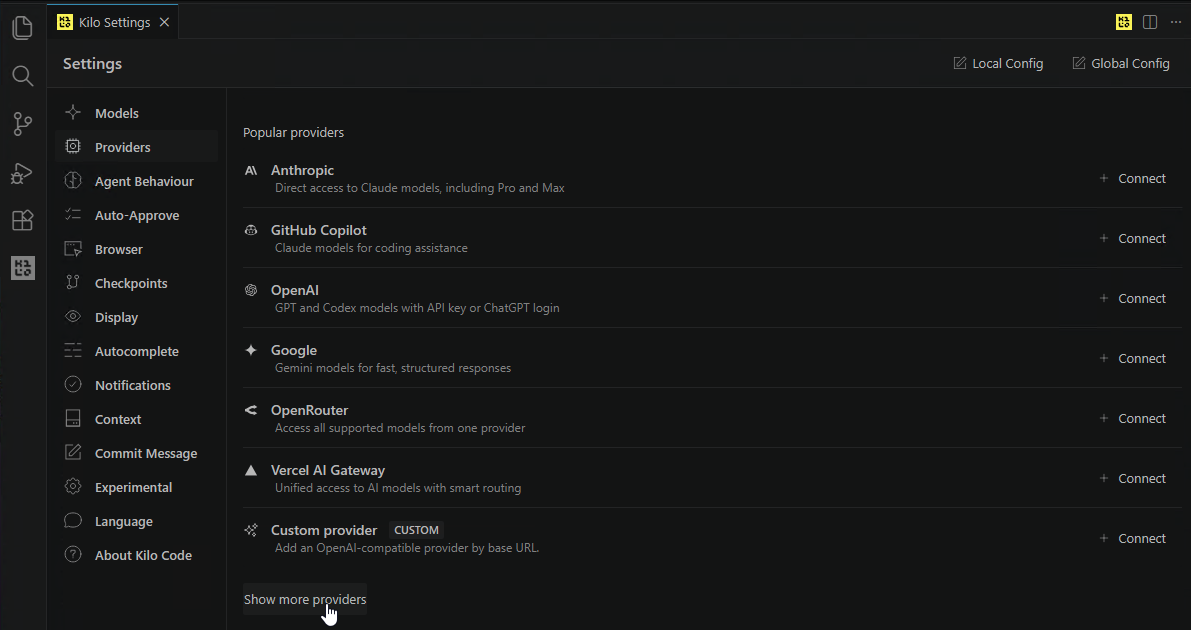

Click the Kilo Code icon in the VS Code sidebar, then open Settings > Providers. You'll see the list of popular providers:

Kilo Code Providers screen

Step 3: Find LLM Gateway

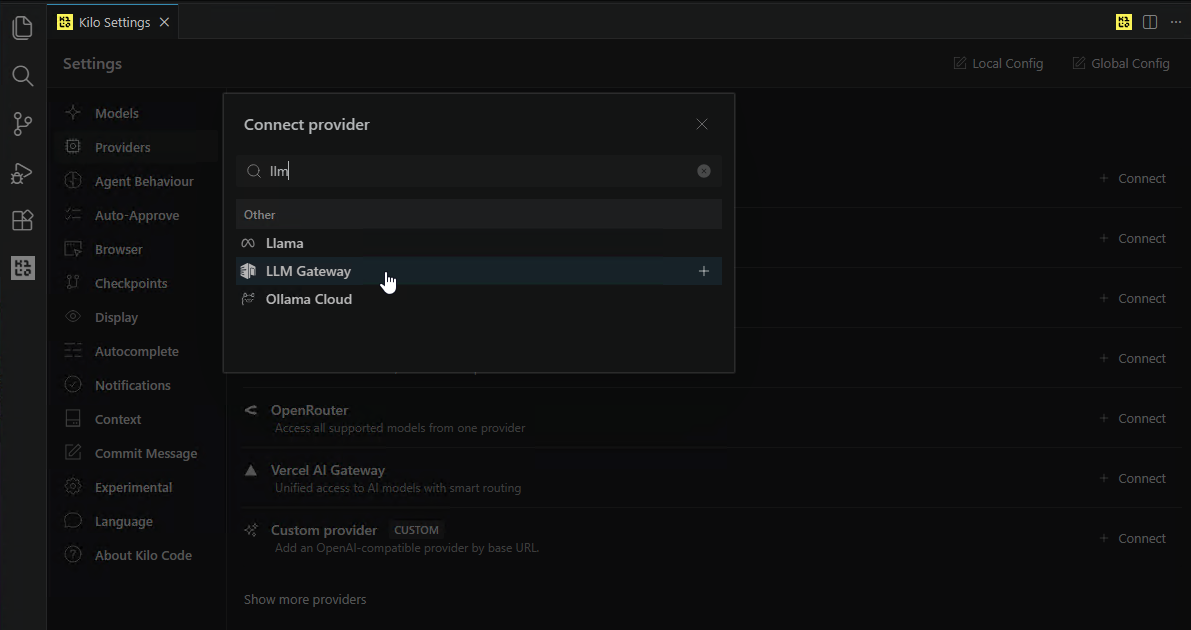

Click Show more providers at the bottom of the list. In the "Connect provider" dialog, type llm in the search box — LLM Gateway will appear:

Searching for LLM Gateway

Click the + button next to LLM Gateway.

Step 4: Enter Your API Key

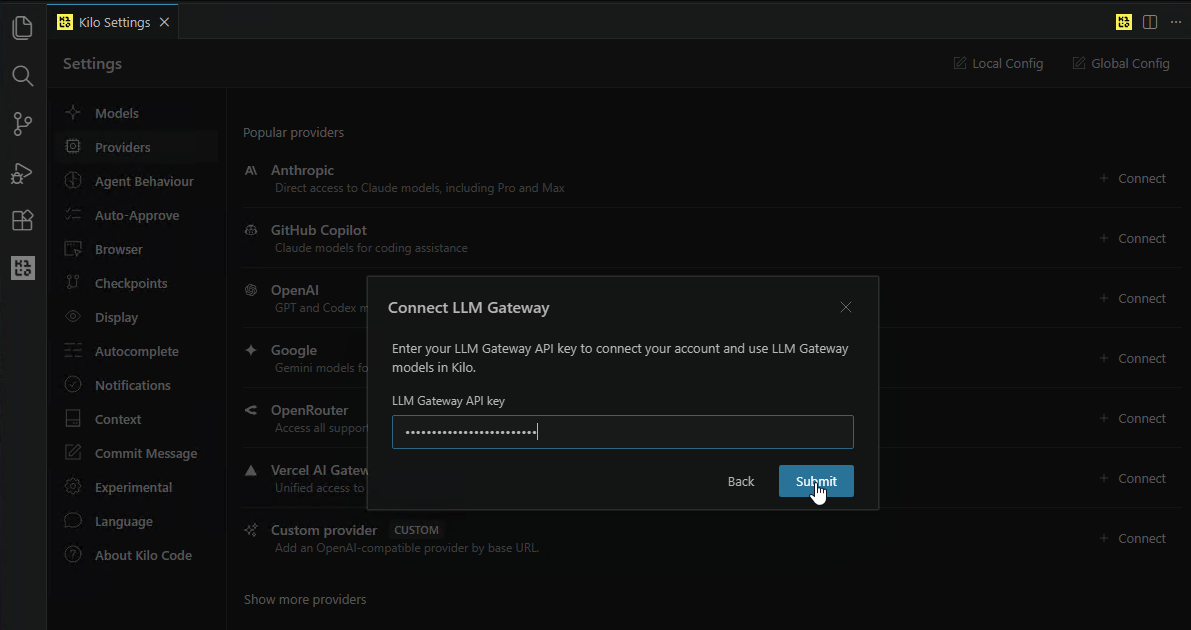

Kilo Code will show the Connect LLM Gateway dialog. Paste your LLM Gateway API key (starts with llmgtwy_) and click Submit:

Connect LLM Gateway — enter API key

Sign up or log in to your LLM Gateway dashboard and navigate to API Keys to get your key.

Step 5: Start Coding

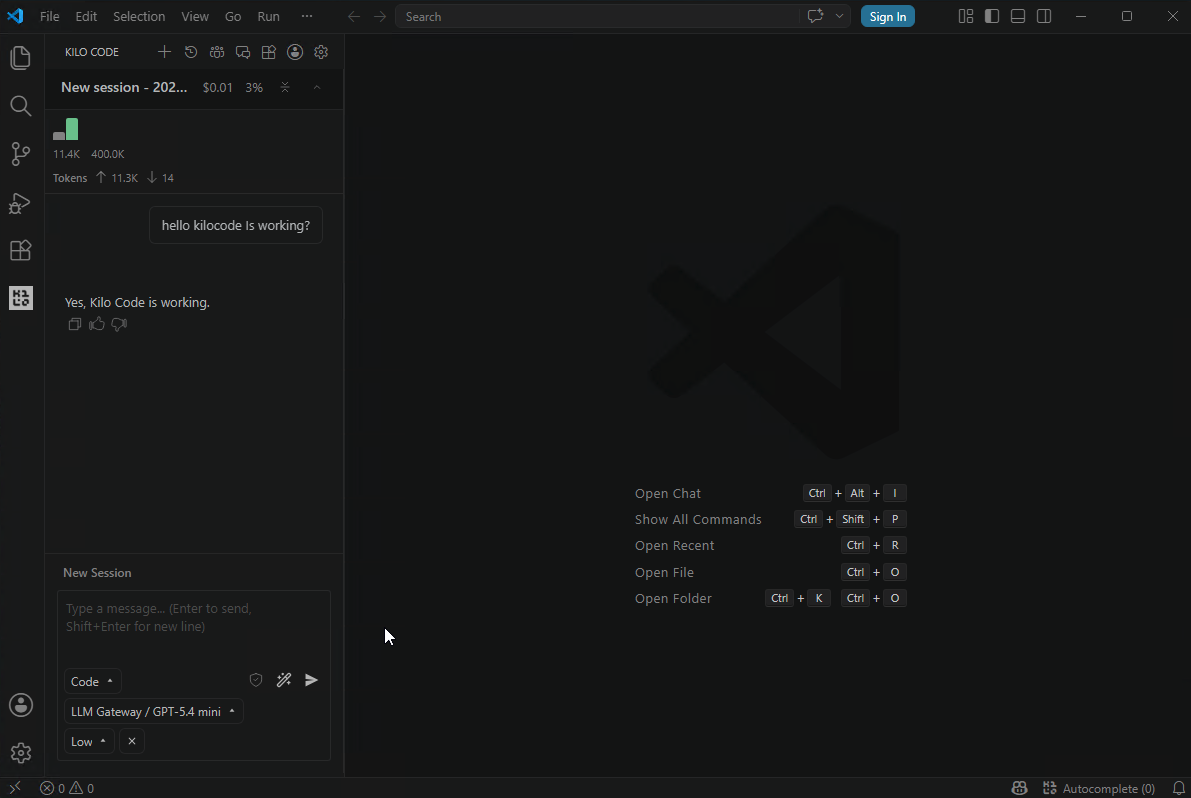

Once connected, select an LLM Gateway model from the model picker at the bottom of the chat panel. All requests now route through LLM Gateway — you'll see usage, costs, and logs in your dashboard:

Kilo Code chat active with LLM Gateway

Why Use LLM Gateway with Kilo Code?

  • 210+ models — Claude, GPT, Gemini, Llama, DeepSeek, and more from 60+ providers
  • One API key — Stop managing separate keys for each provider
  • Cost tracking — See exactly what each session costs in your dashboard
  • Response caching — Repeated requests hit cache automatically
  • Automatic fallback — If a provider is down, requests route to an alternative
  • Volume discounts — Check discounted models for savings up to 90%

Features

Once configured, you can use all of Kilo Code's features with LLM Gateway:

  • Autonomous coding — Create and edit files, build features from natural language
  • Terminal commands — Run builds, tests, and scripts directly from the chat
  • Browser automation — Preview and interact with web apps
  • Checkpoints — Save and restore session states
  • Multiple modes — Switch between Code, Architect, Ask, and Debug modes

Switching Models

Click the model name at the bottom of the Kilo Code chat panel to open the model picker. Select any LLM Gateway model — the switch takes effect immediately for the next message.

Troubleshooting

LLM Gateway not in provider list

Click Show more providers at the bottom of the Providers page. In the search dialog, type "llm" or "gateway" to find it.

Authentication errors

Make sure your API key starts with llmgtwy_ and is active. Check your dashboard to confirm the key is valid.

Model not found

Verify the model ID matches exactly what's listed on the models page. Model IDs are case-sensitive.
